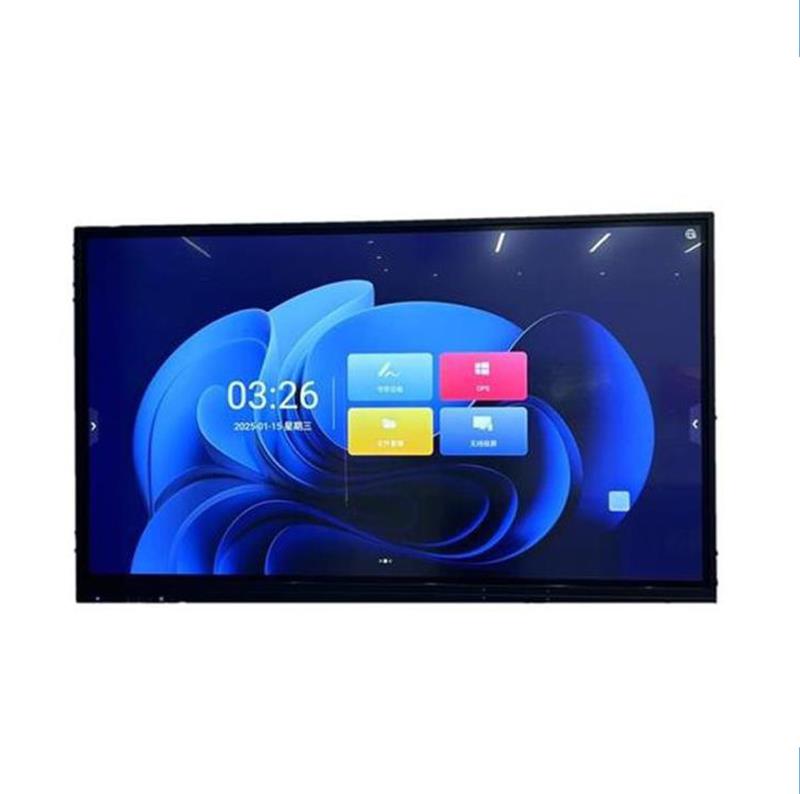

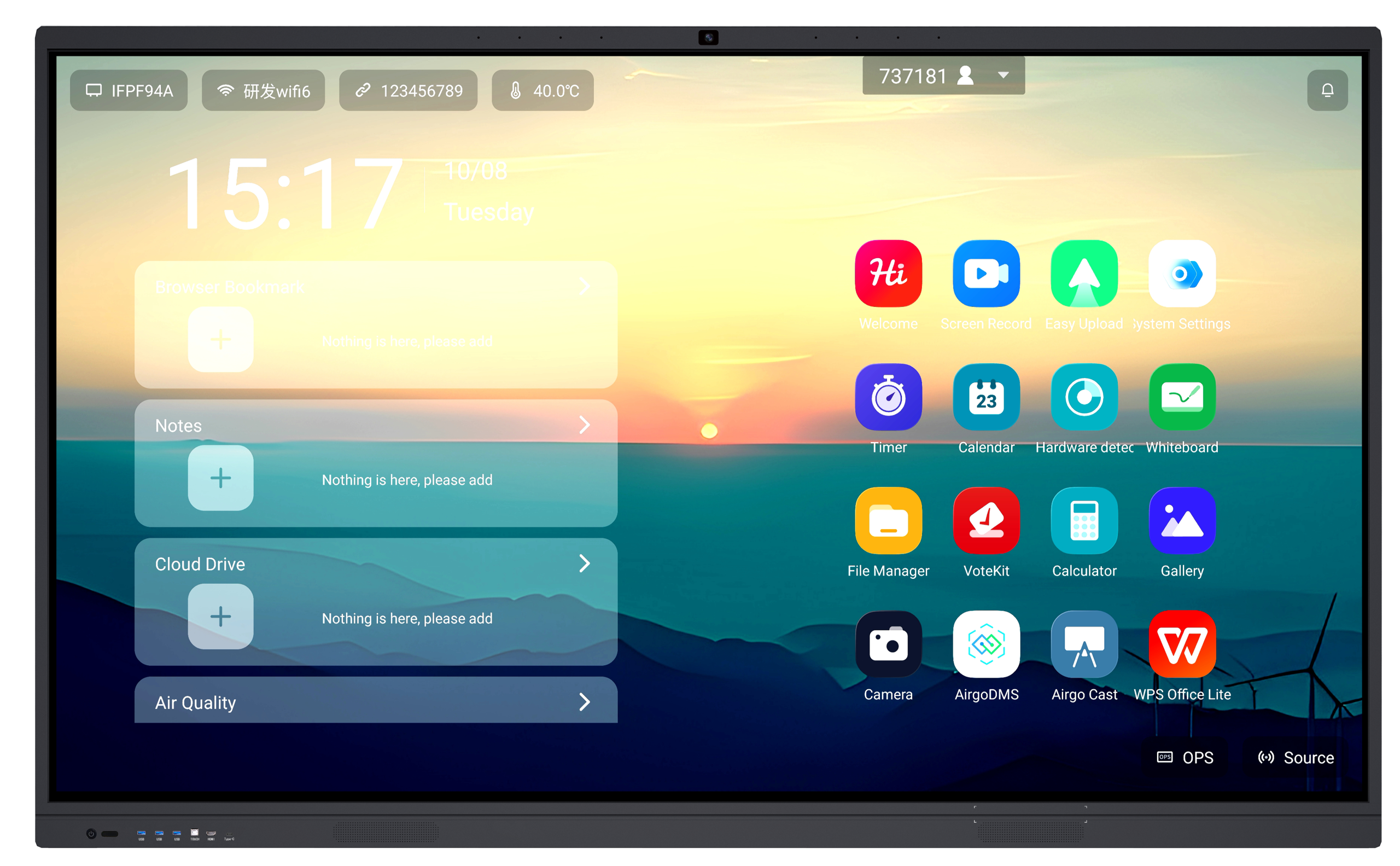

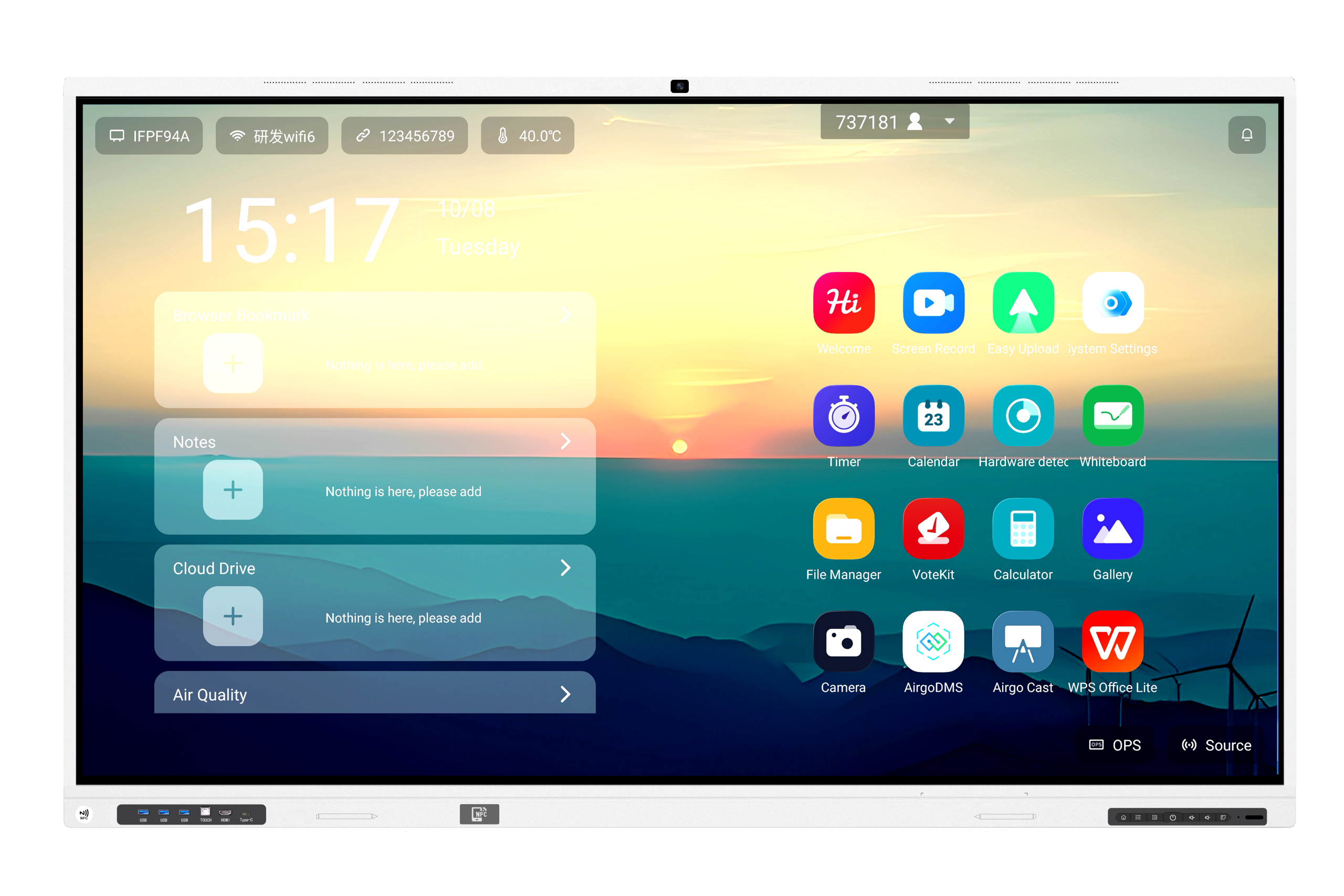

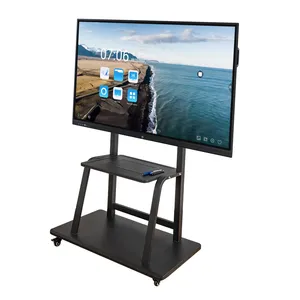

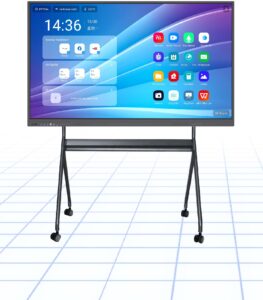

Interactive Flat Panel

Android 14/ Dual system supported/ 9679/ Anti-glare/ Front Type-c/ Black/ Wifi6+bluetooth 5.2

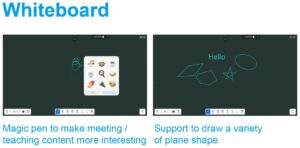

1. Quad core CPU, high-definition 4K UI/writing whiteboard
2. Support to display multiple application screens at the same time
3. When performing any other operations, pull up to call out the quick record of the whiteboard,Call method: Swipe up from the bottom of the screen to call out
4. Support Bluetooth 5.0,WiFi 6
5. 3 sets of dual channel USB on front panel, high-definition HDMI/Touch/Simple function Type-C

Product Details:



Interactive  Flat Panel (T Series 9679 LG J )(X)
Model YC55HT YC65HT YC75HT YC85HT YC86HT YC98HT
Display Parameter Diagonal Size 55inch 65inch 75inch 85inch 86inch 98inch
Effective Display Area 1209.6(H)*680.4(V) 1428.48(H)*803.52(V) 1650.24(H)×928.26(V) 1872(H)×1053(V) 1895(H)×1066(V) 2158.85(H)*1214.35(V)
Display Ratio 16:9 16:9 16:9 16:9 16:9 16:9
Brightness 320cd/㎡ 320cd/㎡ 350cd/㎡ 350cd/㎡ 350cd/㎡ 350cd/㎡
Contrast Ratio 4000:1 4000:1 4000:1 4000:1 4000:1 1200:1
Backlight Type DLED DLED DLED DLED DLED DLED
Viewing Angle 178°(V)/178°(H) 178°(V)/178°(H) 178°(V)/178°(H) 178°(V)/178°(H) 178°(V)/178°(H) 178°(V)/178°(H)
Resolution 3840(H) X 2160(V) 3840(H) X 2160(V) 3840(H) X 2160(V) 3840(H) X 2160(V) 3840(H) X 2160(V) 3840(H) X 2160(V)
Audio Output Power 8Ω/10W*2 8Ω/15W*2 8Ω/15W*2 8Ω/15W*2 8Ω/15W*2 8Ω/15W*2
Touch Touch technology Infrared Multi Touch Technology
Touch Points 20 points touch
Drive HID drive free
Writing surface material 4mm  Ag anti glare glass
Touch Screen Sensor Mode Finger, writing pen, hand with gloves or other non transparent touch sensitive medium
Resolution 32768X32768
Communication Port USB 2.0
Min Recognition Dim 2mm
ResponseTime ≤10ms
Touch Accuracy ±1mm
Anti-Interference Incandescent lamp (220V, 100W), vertical distance 350mm above, The illumination intensity of the sun is up to 80000Lux
Calibration Calibration free
Touch Times More than 60 million times in the same position
Touch Power supply Mode USB 5.0V power supply
Android Specs Android Frequency Quad core ARM Cortex-A73
System Version Android 14
Memory DDR4 4G
FLASH 32G
WIFI 2.4G+5G
Bluetooth 5.2
Back port Input LAN IN 1
HDMI 2.0 2
RS-232 1
USB 3.0 1
MIC 1
USB 2.0 2
TF-card 1
OUT Earphone 1
coaxial(RCA) 1
TOUCH OUT 1
Front port and function USB2.0 3
HDMI 2.0 1
USB TOUCH 1
Type-C 1
Front button Power Button On/Off 1
Accessories Magnetic whiteboard Pen X1pc, Wall-Mount Bracket X1set, Power Cord X1pc, Remote Control X1pc,WiFi antenna X2pcs
Others Power consumption of the whole machine (excluding OPS) ≤190W ≤210W ≤325W ≤420W ≤420W ≤500W
Standby consumption ≤0.5W ≤0.5W ≤0.5W ≤0.5W ≤0.5W ≤0.5W
Lifetime 30000 hours 30000 hours 30000 hours 30000 hours 30000 hours 30000 hours
power supply 100-240V, 50/60Hz 100-240V, 50/60Hz 100-240V, 50/60Hz 100-240V, 50/60Hz 100-240V, 50/60Hz 100-240V, 50/60Hz
Demission 1259.8*777.18*84.8(mm) 1485.2*905.7*88.3(mm) 1707.6*1030.9*88.3(mm) 1953.56*1177.9*88.3(mm) 1953.56*1177.9*88.3(mm) 2217.4*1324.18*108.3(mm)
VESA  hole site 4-M8  hole site 400mm*400mm 4-M8  hole site 500mm*400mm 4-M8  hole site 600mm*400mm 4-M8  hole site 800mm*400mm 4-M8  hole site 800mm*400mm 4-M8  hole site 900mm*600mm
Net Weight 24.3KG 37KG 50.6KG 66KG 66KG 87.1kg
Gross Weight 29KG 45.75KG 62KG 82KG 82KG 111kg
package size 1350*890*190mm 1600*1030*200mm 1855*1170*200mm 2095*1320*220mm 2095*1320*220mm 2358*1485*280mm
 PC(Optional) PC Option H81/H110/H310 Mainboard H81/H110/H310 Mainboard H81/H110/H310 Mainboard H81/H110/H310 Mainboard H81/H110/H310 Mainboard H81/H110/H310 Mainboard
Input Voluge 18V DC 18V DC 18V DC 18V DC 18V DC 18V DC
Rated Output Current 5A 5A 6A 6A 6A 6A
Peak Output Current 6A 6A 8A 8A 8A 8A
Rated Load Power 90W 90W 108W 108W 108W 108W
lnterface Canform to Intel®  OPS-C JAE 80-pin connector
National standard OPS size L194.6*W179.8*H42mm(42mm or 30mm)
European standard OPS size L180*W119*H30mm
